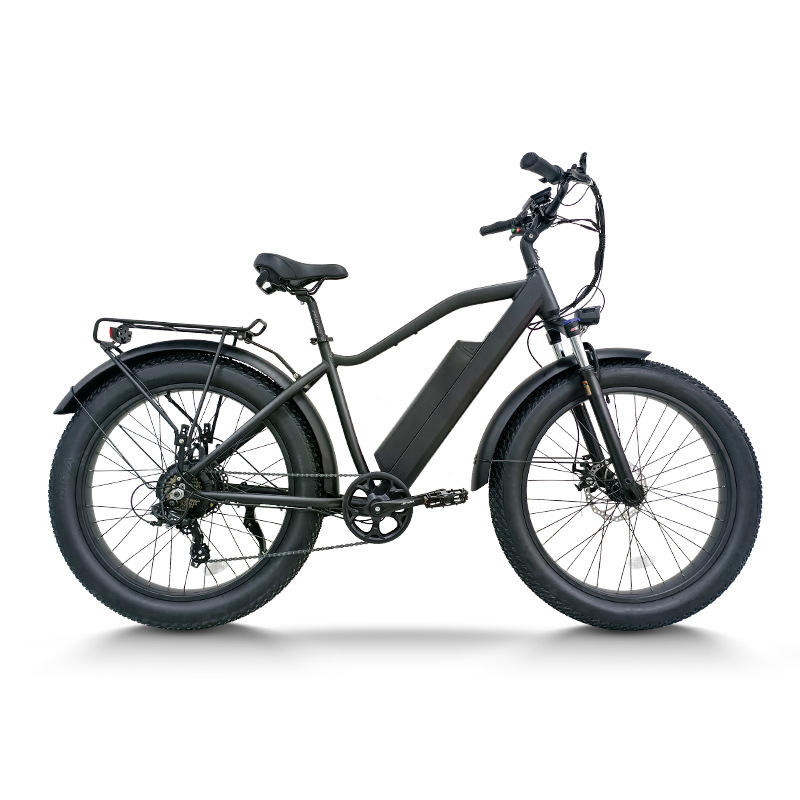

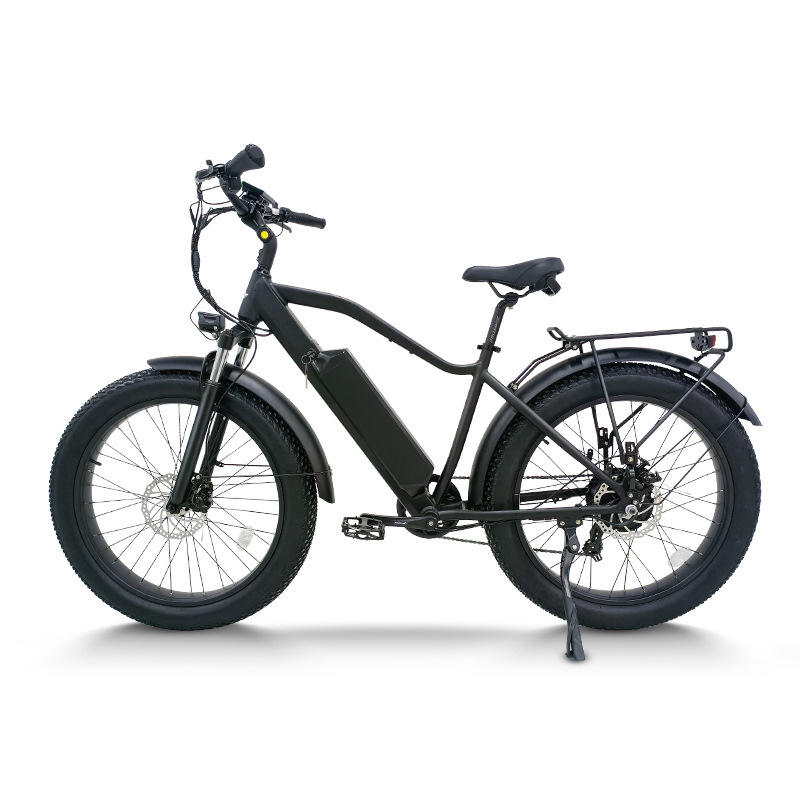

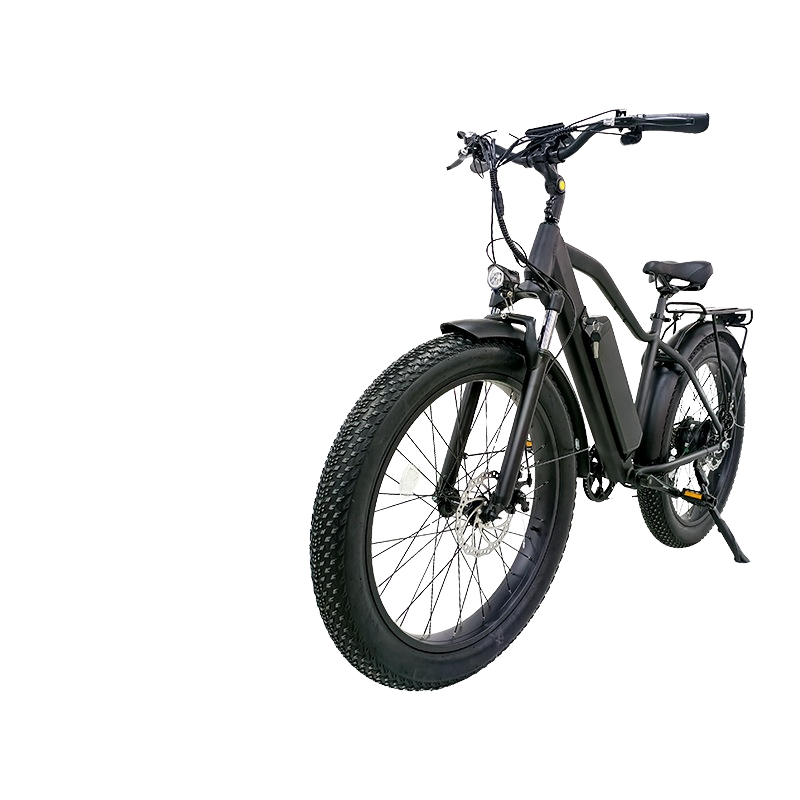

Volt Motions ApexTrail 500 Full Suspension Fat Tire E-Bike

The Volt Motions ApexTrail 500 Full Suspension Fat Tire E-Bike is a rugged and versatile electric bicycle engineered for riders seeking comfort, stability, and dependable all-terrain performance. Built with a durable aluminum alloy frame and powered by a responsive 500W brushless rear hub motor, this fat tire e-bike delivers smooth electric assistance for city commuting, trail exploration, snow riding, and recreational off-road adventures.

Powered by a 48V 13Ah lithium battery, the Volt Motions ApexTrail 500 provides a real-world riding range of approximately 55–65 km per charge, making it ideal for daily transportation, outdoor recreation, and long-distance weekend rides. Its oversized 26" × 4.0" fat tires provide exceptional traction and shock absorption across pavement, gravel, sand, snow, and uneven terrain, while the full suspension system enhances comfort and handling on rough trails and bumpy surfaces.

Designed for performance and practicality, the Volt Motions ApexTrail 500 features front and rear disc brakes for reliable stopping power, a Shimano 7-speed drivetrain for smooth and responsive shifting, and an integrated downtube battery design for improved weight distribution and a clean modern appearance. With torque output between 90–100 Nm and a stable upright riding position, this e-bike combines comfort, capability, and durability in a premium all-terrain platform.

Features

• 500W Brushless Rear Hub Motor – Smooth and efficient electric assist for urban and off-road riding
• 48V 13Ah Lithium Battery – Long-range battery system with approximately 55–65 km per charge
• Full Suspension System – Front and rear suspension for improved comfort and control on rough terrain
• 26" × 4.0" Fat Tires – Enhanced traction, stability, and shock absorption across varied surfaces
• Aluminum Alloy Frame – Lightweight yet durable construction for everyday riding performance
• Shimano 7-Speed Drivetrain – Reliable gear shifting for climbs, cruising, and mixed terrain conditions
• Front & Rear Disc Brakes – Dependable stopping power and improved rider safety
• Integrated Downtube Battery – Balanced frame design with a streamlined modern appearance

Specifications

• Product Name: Volt Motions ApexTrail 500 Full Suspension Fat Tire E-Bike
• Motor: 500W Brushless Rear Hub Motor
• Voltage: 48V
• Battery Capacity: 13Ah Lithium Battery
• Range: 55–65 km per charge
• Max Speed: Up to 25 km/h
• Torque: 90–100 Nm
• Wheel Size: 26 Inches
• Tire Size: 26" × 4.0" Fat Tires
• Frame Material: Aluminum Alloy
• Suspension: Front & Rear Suspension
• Gears: Shimano 7-Speed Drivetrain
• Brakes: Front & Rear Disc Brakes
• Battery Position: Integrated Downtube Battery
• Charging Time: Over 3 Hours
• Power Source: Lithium Battery
• Load Capacity: 100–150 kg
• Vehicle Weight: 26 kg
• Net/Gross Weight: 36 kg / 29 kg
• Package Size: 150 × 28 × 80 cm

Warranty

1-Year Limited Warranty

The Volt Motions ApexTrail 500 Full Suspension Fat Tire E-Bike is backed by a 1-year limited warranty for residential and personal use.

Warranty Coverage Includes:

• Manufacturing defects in materials and workmanship
• Motor and electrical component failures under normal operating conditions
• Structural integrity of the aluminum alloy frame

Warranty Exclusions:

• Damage caused by misuse, accidents, improper maintenance, or neglect
• Normal wear and tear from regular riding use
• Unauthorized modifications or third-party repairs

Support: For warranty claims and technical assistance, please contact us at sales@voltmotions.com. Replacement parts are available throughout the warranty period.
